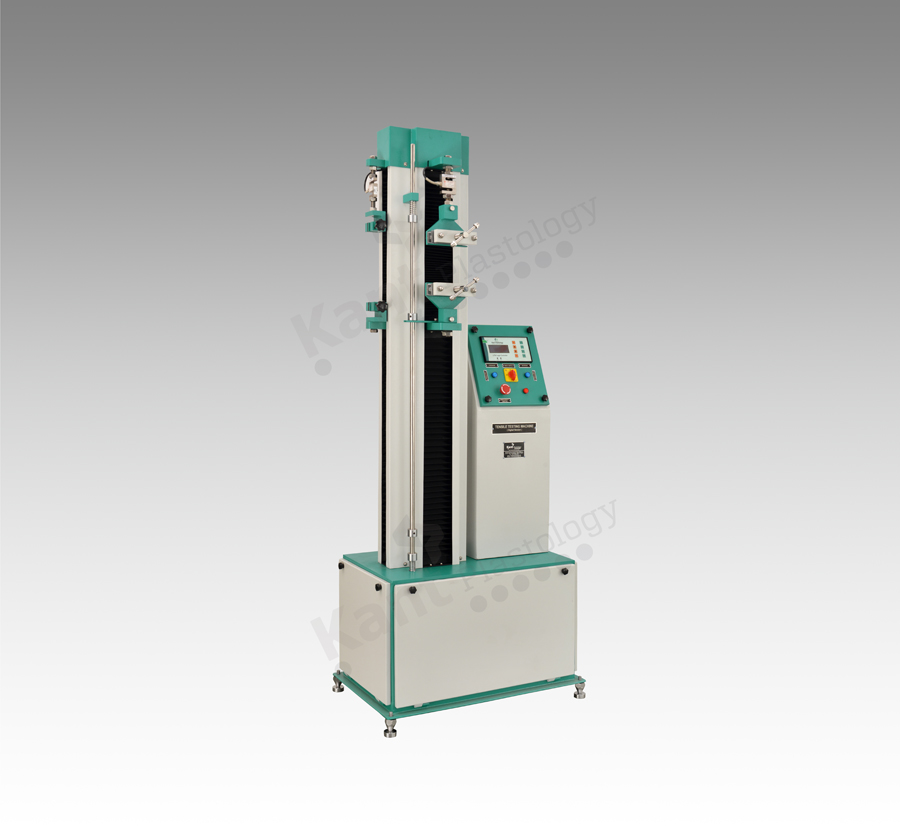

TENSILE TESTING MACHINE |
Model No.
K-TTM-02LC/K-TTM-02LC-xi
|
Kant Plastology offering a commendable range of Digital TENSILE TESTING MACHINE for determines the mechanical strength of various products like Plastic Pipe, HDPE/PP Tape – Fabric, Plastics rope and many more plastics products. The machine is manufactured from high grade raw material with latest technology which is inspected properly by our highly professional engineers. The offered machines owing the feature like digitally control LCD display, precision load-cell with durable and sturdy structure of machine. Kant Plastology provide the entire range of TENSILE TESTING MACHINE with multitude of sizes, designs and other related customize specification and designs.
SpecificationMODEL (K-TTM-02LC/K-TTM-02LC-xi) | |
Available in test capacity | Loadcell 1 – 500kgf / 5kN Loadcell 2 – 50kgf / 500N |
System status | Digital model – K-UTM-02LC Blue color four line LCD display indicated the value of Load, Extension, Testing speed & Type of test, machine operate through manual function only Computer interface model – K-UTM-02LC-Xi The windows based software to interface the computer, data entry through software, PC connectivity of RS-232 & graphical data type test reports can be printed through software |
Test jaws | Dual set of vice type test jaws for tensile test are fitted on machine |
No. of screws | Single screw – nut (ball screw at optional) mechanism driven through reputed make motor & gearbox |
Load cell | Dual ‘S’ type loadcell of reputed make |
Load cell unit | kgf / N |
Cross head travel | 700mm |
Extension accuracy | 0.1mm |
Speed | Available fixed speed of 100mm / minute or 300mm / minute variable speed through frequency controlled A.C. drive available as optional |
Power supply | 440V AC, Three phase, 50Hz |
